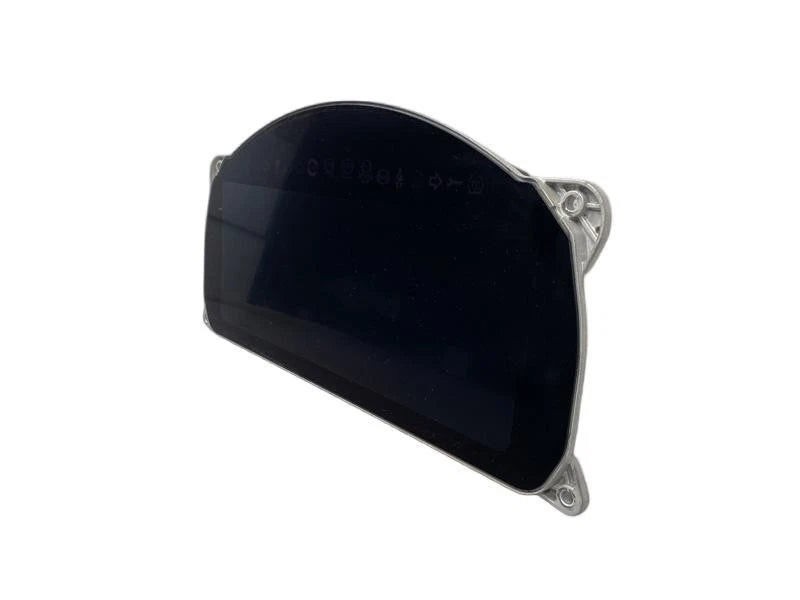

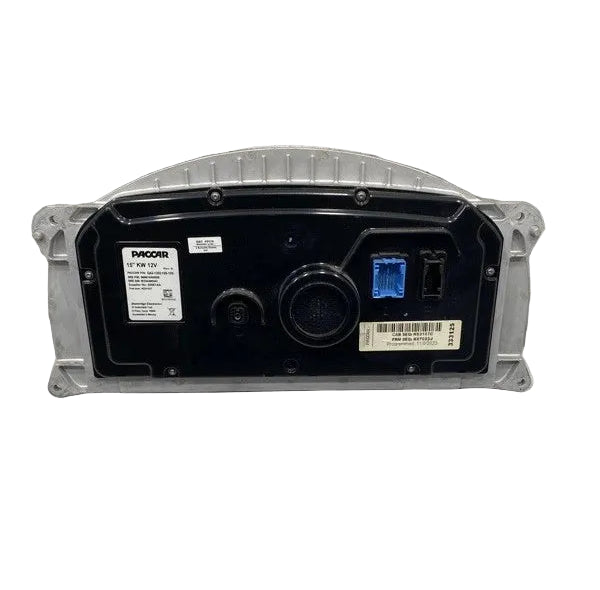

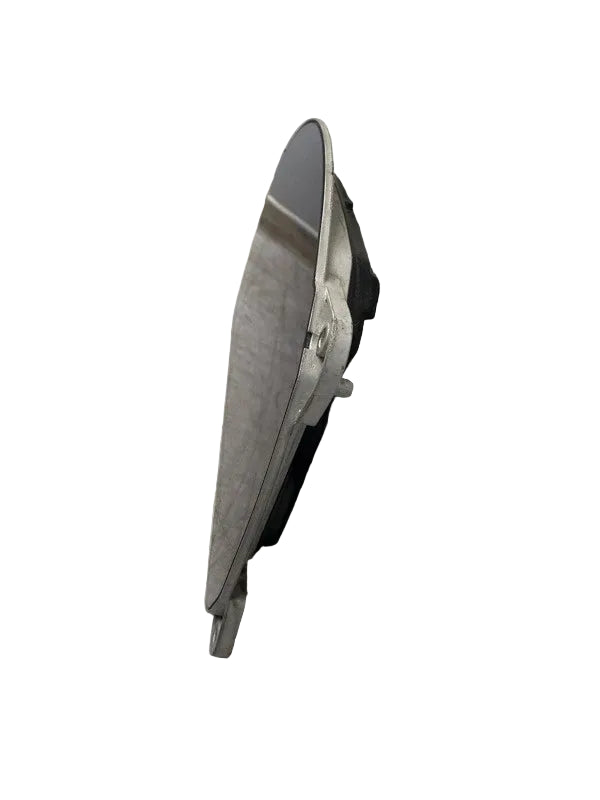

Q43-1202-100-100 Genuine Paccar Digital Display Cluster

Product Overview

The Q43-1202-100-100 is a genuine Paccar driver digital display cluster specified for 15 KW applications with a 12V electrical system. Installed within the driver's instrument panel, this electronic display assembly presents vehicle operating information through a digital interface, allowing the operator to monitor information provided by the connected truck instrumentation system.

Product Features

The Q43-1202-100-100 Paccar digital display cluster is a 12V driver instrumentation component designed to present electronic vehicle information through the designated dashboard display interface.

• Presents operating information received from the connected vehicle instrumentation circuits
• Uses a digital display interface for driver access to vehicle status information
• Operates with the specified 12V electrical supply used by the display assembly
• Occupies the designated instrument cluster position within the truck cab dashboard
• Receives display information according to the installed vehicle electronic system configuration
• Provides a centralized viewing area for information assigned to the driver display

General Specifications

Installation Notes

The Q43-1202-100-100 should be installed after examining the original instrument cluster mounting arrangement, inspecting the electrical connectors for damaged terminals, and confirming that the dashboard opening accommodates the specified digital display assembly. Following installation, check display startup and communication with the connected vehicle systems, and perform any required instrument cluster configuration or diagnostic procedures according to the applicable Paccar service instructions.

Always verify the original cluster part number, 15 KW application designation, 12V electrical specification, dashboard mounting configuration, connector arrangement, and electronic programming requirements before installation.
