C81-1004 Genuine Kenworth Air Spring For AG200 AG400 40K Suspension

C81-1004 Genuine Kenworth Air Spring For AG200 AG400 40K Suspension

P/N: C81-1004 Manufactured by: Kenworth
$289.00 - $289.00
$289.00
$289.00 - $289.00
$289.00
1 in Stock
Condition: New
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not Sure Which Part Fits?
Our support team is here to help.
+1 (828) 209-8010
Monday – Saturday | 8:00 AM – 8:00 PM (EST)
Fast 2–3 Day Shipping
30-Day Returns
In Stock & Ships Fast
Expert Support Available
2-Year Warranty

At Line Truck Parts LLC, we are committed to providing reliable automotive parts and a transparent customer experience. Eligible parts purchased directly from our website are covered by a 2-Year Limited Warranty, giving you added confidence in your purchase. Learn More

Product Overview

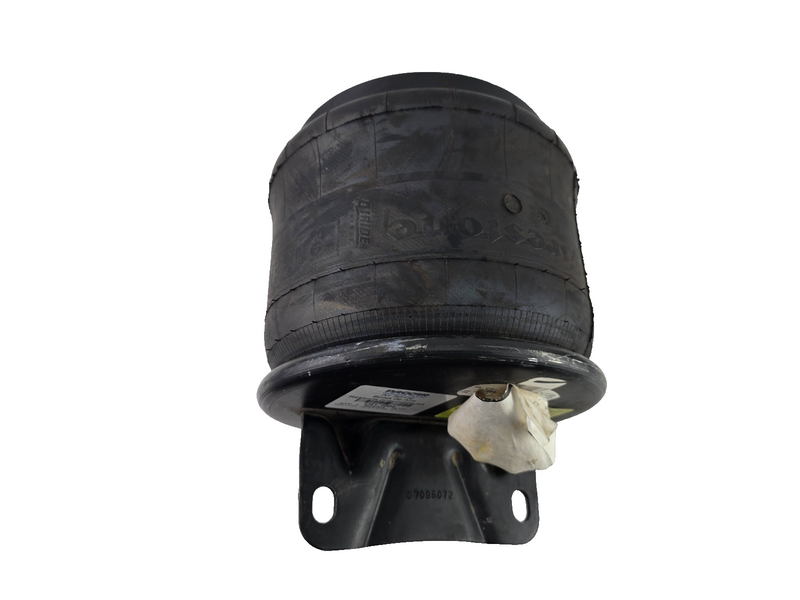

The C81-1004 Genuine Kenworth Air Spring is a pneumatic suspension component used in Kenworth AG200 and AG400 40K suspension systems to support vehicle loads and control vertical axle movement under changing road conditions. Its multi-ribbed rubber bellows and steel bead plate construction form an expandable air chamber that responds to suspension compression and extension, helping absorb road impacts and maintain regulated ride height through controlled air pressure.

Product Features

The C81-1004 Air Spring provides pneumatic load support and controlled axle movement within Kenworth AG200 and AG400 40K suspension systems.

  • Supports vertical suspension movement by compressing and expanding the air chamber under changing axle loads
  • Uses multi-ribbed rubber bellows construction to accommodate repeated suspension compression and extension cycles
  • Incorporates circular steel bead plates that provide structural support at the air spring mounting surfaces
  • Maintains a specified 9.0-inch height profile for the designated suspension assembly configuration
  • Helps absorb road impacts and reduce vibration transferred from the axle into the chassis
  • Supports regulated suspension ride height through controlled air pressure during loaded and unloaded operation

General Specifications

Condition New
Part Number C81-1004
Brand Kenworth
Part Type Air Suspension Spring
Suspension Applications AG200, AG400
Suspension Rating 40K
Construction Multi-Ribbed Rubber Bellows
Bead Plate Material Steel
Bellows Material Elastomer
Fitment Type Direct Replacement
Dimensions 9.0" Height


Installation Notes

The C81-1004 Air Spring is installed within the Kenworth AG200 or AG400 40K suspension assembly, where it provides pneumatic support between the designated suspension mounting points. Inspect the air spring mounting surfaces, air supply connection, suspension alignment, and surrounding components before installation and pressurization.

Always verify suspension model, 40K rating, air spring mounting configuration, specified height, and air connection requirements before installation.
