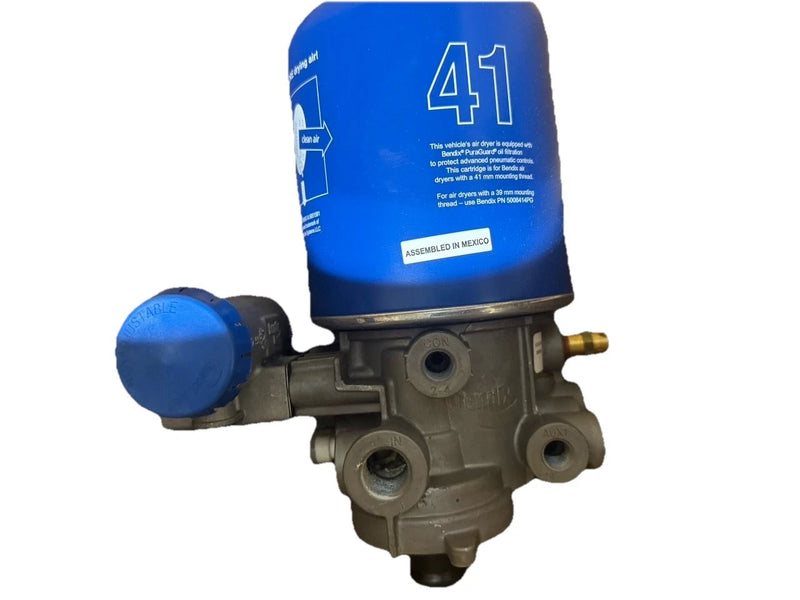

K160648 Genuine Bendix AD-HF High Flow Air Dryer

K160648 Genuine Bendix AD-HF High Flow Air Dryer

P/N: K160648 Manufactured by: Bendix
$1,247.00 - $1,247.00
$1,247.00
$1,247.00 - $1,247.00
$1,247.00
1 in Stock
Condition: New
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not Sure Which Part Fits?
Our support team is here to help.
+1 (828) 209-8010
Monday – Saturday | 8:00 AM – 8:00 PM (EST)
Fast 2–3 Day Shipping
30-Day Returns
In Stock & Ships Fast
Expert Support Available
2-Year Warranty

At Line Truck Parts LLC, we are committed to providing reliable automotive parts and a transparent customer experience. Eligible parts purchased directly from our website are covered by a 2-Year Limited Warranty, giving you added confidence in your purchase. Learn More

Product Overview

The K160648 is a genuine Bendix AD-HF High Flow air dryer designed for specified Kenworth, Freightliner, Volvo, Peterbilt, International, and Mack trucks, as well as Utility 3000 Series trailers. This stand-alone unit operates within the compressed air system, using a PuraGuard coalescing cartridge to remove moisture and oil aerosols from compressed air before distribution to downstream circuits.

Product Features

The K160648 AD-HF High Flow air dryer is manufactured to Bendix factory specifications for compressed air drying and pressure distribution:

  • Features a stand-alone AD-HF configuration with a 1/2-14 NPT supply port for compressed air connections.
  • Uses a PuraGuard coalescing cartridge to remove moisture and oil aerosols from the compressed air supply.
  • Incorporates four parallel pressure protection valves for primary, secondary, and auxiliary air delivery circuits.
  • Equipped with an extended purge volume and hard-seat purge valve for controlled moisture discharge.
  • Includes a 12V, 90W heater with a sealed Metri-Pack 280 Series two-way electrical connector.
  • Features a non-adjustable governor with 110 PSI cut-in and 130 PSI cut-out pressure settings.
  • Uses an aluminum reservoir with integral fill, measuring 10.2 inches in diameter and 6.35 inches long.

Technical Specifications

Condition New
Part Number K160648
Brand Bendix
Part Type AD-HF High Flow Air Dryer
Years 2010–2023 (specified applications)
Configuration Stand-Alone
Weight 28.75 lb
Mounting 3/8-16 UNC-2B (4x)
Supply Port 1/2-14 NPT
Delivery Opening Pressure 103 PSI Primary / 112 PSI Secondary & Auxiliary
Governor Pressure 110 PSI Cut-in / 130 PSI Cut-out
Pressure Protection Valves 4 in Parallel
Heater / Connector 12V / 90W, Metri-Pack 280 Series
Cartridge Type PuraGuard Coalescing
Reservoir Aluminum, 10.2 IN Diameter × 6.35 IN Length


Installation Notes

The K160648 air dryer requires verification of the mounting configuration, pneumatic port connections, and 12V heater connector before installation. Confirm adequate clearance for the PuraGuard cartridge and follow the specified air line routing and pressure circuit connections.

Always depressurize the air system before installation and verify part number, port configuration, and electrical compatibility with the vehicle's original equipment specifications.
